■ Outline dimension

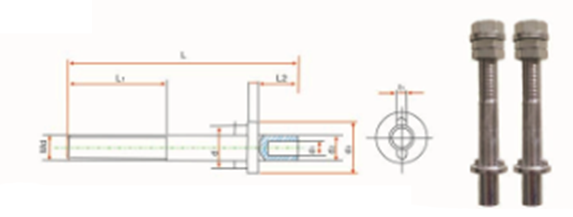

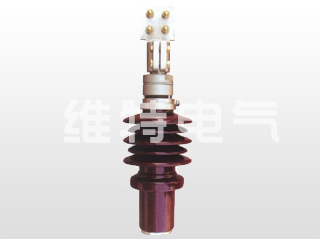

■ Technical parameters and outline dimension
|
Code |
Rated current A |
Dimensions (mm) |
Weight Kg |
|||||||||
|
L |
L1 |
L2 |
Md |
d |
d1 |
d2 |
d3 |
t |
t1 |
|||
|
WT. 0050. 1 |
50 |
115 |
55 |
20 |
12X1.75 |
20 |
6 |
12 |
25 |
5 |
4 |
0.17 |
|
WT.0100.2 |
100 |
115 |
55 |
20 |
12X1.75 |
20 |
12 |
18 |
25 |
5 |
4 |
0.18 |
|
WT.0600.3 |
275 |
115 |
55 |
20 |
12X1.75 |
20 |
12 |
18 |
25 |
5 |
4 |
0.18 |
|
WT.0275.3 |
315 |
115 |
55 |
20 |
12X1.75 |
20 |
18 |
25 |
25 |
5 |
4 |
0.2 |
|
WT.0400.5.A |
400 |
205 |
90 |
28 |
16X2 |
28 |
12 |
20 |
32 |
10 |
6 |
0.48 |
|
WT.0400.5.B |
400 |
205 |
80 |
28 |
16X2 |
28 |
16 |
24 |
32 |
10 |
6 |
0.5 |
|
WT.0600.6.A |
600 |
205 |
80 |
28 |
20X2. 5 |
28 |
16 |
24 |
32 |
10 |
6 |
0.7 |
|
WT.0600.6.B |
600 |
205 |
80 |
28 |
20X2. 5 |
28 |
20 |
30 |
23 |
10 |
6 |
0.75 |

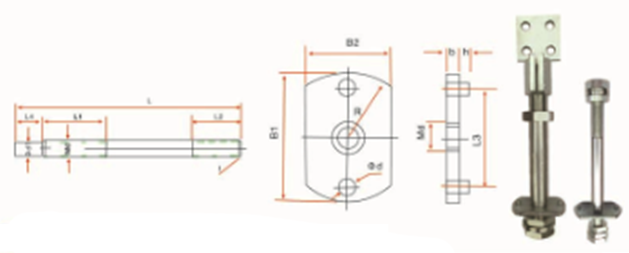

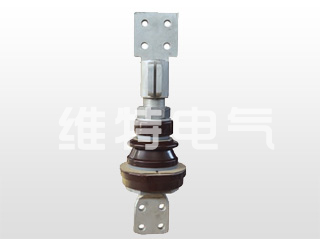

■ Technical parameters and outline dimension
|
Code |
Rated current A |
Dimensions (mm) |
Weight Kg |
|||||||||||||
|
L |
L1 |
L2 |
L3 |
Md |
Od | B1 | B2 | R |
b |
h |
t |
Od1 |
L4 |
|||
|
WT.0300 |
300 |
195 |
65 |
30 |
36 |
12x1.75 |
5 |
50 |
30 |
25 |
5 |
4.5 |
1 |
|
0.3 |
|
|
WT.0400 |
400 |
225 |
75 |
40 |
55 |
16x2 |
6 | 70 | 45 | 35 |
6 |
5 |
1 |
|
0.65 |
|
|
WT.0600 |
600 |
230 |
55 |
50 |
55 |
20x2.5 |
6 | 70 | 45 | 35 |
6 |
5 |
1.5 |
|
0.95 |
|
|
WT.0800 |
800 |
265 |
70 |
55 |
70 |
24x1.5 |
8 | 90 | 60 | 45 |
8 |
5 |
1.5 |
|
1.6 |
|
|
WT.1000 |
1000 |
275 |
45 |
45 |
70 |
30x1.5 |
8 | 90 | 60 | 45 |
8 |
5 |
1.5 |
27 |
60 |
2.3 |
|
WT.1200 |
1200 |
285 |
55 |
45 |
70 |
33x1.5 |
8 | 90 | 60 | 45 |
8 |
5 |
1.5 |
30 |
60 |
2.75 |
