The suitable frequency of this switch is 50 and 60 Hz, and the nominal voltage is 10 and 35Kv, and the rated current is 20 to 150A. It is applicable to three-phase oil immersed transformer. There are two kinds of voltage regulating parts: the central part and neutral point. The parts can be directly fixed on the transformer tank cover or the tank wall, and can be tap switched in the non-excitation condition.

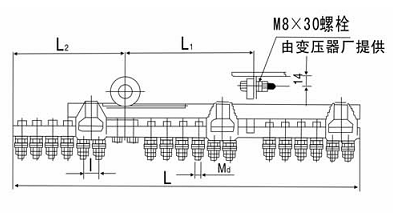

M8 *30 bolt, provided by transformer factory
E-mail: [email protected]
Tel: 0318-3736777
Fax: 0318-3736969
| Code | Rated current(A) | Rated voltage (KV) | Voltage adjustment range | Phase |
Surge Position |
H | H1 | L | L1 | L2 | L3 | L4 | I | Md | Box fluid opening (mm) |
|
WSTII 63/10-4x3 |
63 |
10 |
±5% |
3 | Central |
180 |
100 |
376 |
143 |
122 |
58 |
97 |
24 |
M6 |
Φ43 |
| WSTII 125/10-4x3 | 125 | 10 | ±5% | 3 | Central | 180 | 100 | 441 | 158 | 147 | 58 | 105 | 29 | M8 |
Φ43 |
| WSTII 250/10-4x3 | 250 | 10 | ±5% | 3 | Central | 205 | 120 | 486 | 173 | 162 | 68 | 120 | 34 | M10 | Φ43 |
| WSTII 63/10-4x3B | 63 | 10 | ±5% | 3 | Central | 205 | 125 | 376 | 143 | 122 | 58 | 97 | 24 | M6 | Φ43 |
| WSTII 125/10-4 x3B | 125 | 10 | ±5% | 3 | Central | 205 | 125 | 441 | 158 | 147 | 58 | 105 | 29 | M8 | Φ43 |
| WSTII 63/10-6x5 | 63 | 10 | ±2x5% | 3 | Central | 180 | 100 | 520 | 191 | 170 | 58 | 97 | 24 | M6 | Φ43 |
| WSTII 125/10-6x5 | 125 | 10 | ±2x2% | 3 | Central | 180 | 100 | 615 | 216 | 205 | 58 | 105 | 29 | M8 | Φ43 |
| WSTII 250/10-6x5 | 250 | 10 | +2x2.5% | 3 | Central | 205 | 120 | 690 | 241 | 230 | 68 | 120 | 34 | M10 | Φ43 |
| WSTII 63/10-6x5B | 63 | 10 | +2x2.5% | 3 | Central | 205 | 125 | 520 | 191 | 170 | 58 | 97 | 24 | M6 | Φ43 |
| WSTII 125/10-6 x5B | 125 | 10 | +2x2.5% | 3 | Central | 205 | 125 | 615 | 216 | 205 | 58 | 105 | 29 | M8 | Φ43 |
| WSTII 63/35-4x3 | 63 | 35 | ±5% | 3 | Central | 205 | 120 | 526 | 205 | 157 | 58 | 101 | 24 | M6 | Φ43 |
| WSTII 125/35-4x3 | 125 | 35 | ±5% | 3 | Central | 205 | 120 | 591 | 225 | 182 | 58 | 111 | 29 | M8 | Φ43 |
| WSTII 250/35-4x3 | 250 | 35 | ±5% | 3 | Central | 205 | 120 | 636 | 248 | 197 | 68 | 124 | 34 | M10 | Φ43 |
| WSTII 63/35-6x5 | 63 | 35 | ±2X2.5% | 3 | Central | 205 | 120 | 670 | 255 | 205 | 58 | 101 | 24 | M6 | Φ43 |
| WSTII 125/35-6x5 | 125 | 35 | ±2X2.5% | 3 | Central | 205 | 120 | 765 | 300 | 240 | 58 | 111 | 29 | M8 | Φ43 |
| WSTII 250/35-6x5 | 250 | 35 | ±2X2.5% | 3 | Central | 205 | 120 | 840 | 316 | 265 | 68 | 124 | 34 | M10 | Φ43 |
| WSTII 63/10-3x3 | 63 | 10 | ±5% | 3 | Neutral | 180 | 100 | 345 | 134 | 108 | 58 | 97 | 24 | M6 | Φ43 |
| WST III 125/10-3x3 | 125 | 10 | ±5% | 3 | Neutral | 180 | 100 | 454 | 174 | 143 | 58 | 105 | 29 | M8 | Φ43 |
| WSTII 63/10-5x5 |
63 |
10 | ±2X2.5% | 3 | Neutral | 180 | 100 | 489 | 182 | 156 | 58 | 97 | 24 | M6 | Φ43 |
| WST III 125/10-5x5 | 125 | 10 | ±2X2.5% | 3 | Neutral | 180 | 100 | 628 |
232 |
201 | 58 | 105 | 29 | M8 | Φ43 |
| WST HI 63/35-3x3 | 63 | 35 | ±5% | 3 | Neutral | 205 | 116 | 345 | 134 | 108 | 65 | 101 | 24 | M6 | Φ43 |
| WST1125/35-3x3 | 125 | 35 | ±5% | 3 | Neutral | 205 | 120 | 454 | 174 | 143 | 67 | 110 | 29 | M8 | Φ43 |
| WSTII 63/35-5x5 | 63 | 35 | ±2X2.5% | 3 | Neutral | 205 | 120 | 489 | 182 | 156 | 65 | 101 | 24 | M6 | Φ43 |
| WST III 125/35-5x5 | 125 | 35 | ±2X2.5% | 3 | Neutral | 205 | 120 | 628 | 232 | 201 | 67 | 110 | 29 | M8 | Φ43 |
Switch Type: Switch type
Current Rating: Rated current
Rated voltage: Rated voltage
Voltage adjustment range: Voltage regulating range
Phase: Phase number
Surge parts: Voltage regulating part
Cover openings: Tank cover tapping
Central: Central part
Neutral: Neutral point
